2024 YFM700R SE Promotions


Model Description


More Power. More Fun. More winning.

Once you’ve ridden the YFM700R SE there’s no turning back. Its thrilling power and precise handling ensure adrenaline-charged action on all types of terrain. And once you’re hooked, this mighty ATV will transform your leisure time forever.

The gutsy 686cc 4-stroke engine comes with a series of features that boost power for fast acceleration. And with its efficient fuel consumption, the model takes you further between refills.

Built for racers, the YFM700R Special Edition comes packed with a range of exclusive parts including a high compression head, special cam and race-bred fuel mapping. And with its piggyback shocks and 22-inch Maxxis tyres, the YFM700R SE is built to win.

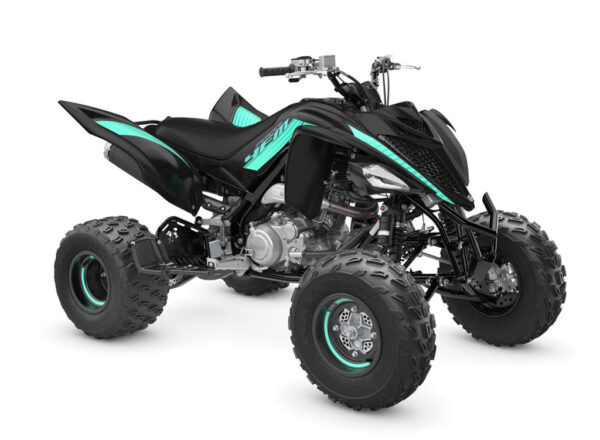

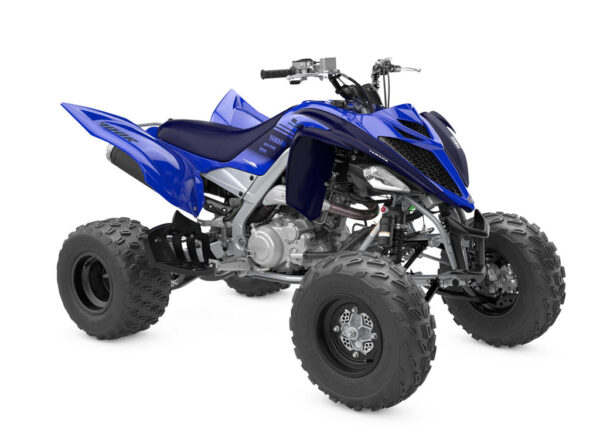

Colours
Midnight Blue – Racing Blue – Ridge Red

  • High-tech race-bred 686cc fuel-injected engine
  • High performance with efficient fuel consumption
  • Strong, lightweight hybrid aluminium/steel frame
  • KYB Piggy Back Rear shock with Dual Compression & Single Rebound adjutment
  • KYB Piggy Back Front shocks with Dual Compression & Single Rebound adjutment
  • Large 22-inch front tyres
  • Aluminium components for reduced unsprung weight
  • 5-speed transmission with reverse – easy shifting
  • Informative easy-to-read LED instrumentation
  • Push-button electric-start for convenience
  • Sleek bodywork with comfortable riding position
  • Built without compromise

Model Specification


  • Engine

    Engine Type

    Single cylinder, Liquid-cooled, 4-stroke, 4-valves

    Fuel System

    Fuel injection, 44 mm

    Starter System

    Electric

    Displacement

    686cc

    Bore x stroke

    102.0 mm x 84.0 mm

    Compression Ratio

    9.2 : 1

    Lubrication System

    Dry sump

    Ignition System

    TCI

    Drive system

    2WD

    Final transmission

    Sealed O-ring chain, eccentric adjustment

  • Frame

    Front suspension system

    KYB Piggy Back with Hi and Low speed compression & single rebound adjustment, Independent double wishbone, threaded preload adjustable spring, 230 mm stroke

    Rear suspension system

    KYB Piggy Back with Hi and Low speed compression & single rebound adjustment, threaded preload adjustable spring, Cast aluminium swingarm, 256 mm stroke

    Front brake

    Dual ventilated disc with hydraulic twin piston callipers

    Rear brake

    Dual ventilated disc with hydraulic caliper

    Front tyres

    AT21x7R10

    Rear tyres

    AT20x10R9

  • Dimensions

    Overall length

    1,845 mm

    Overall width

    1,170 mm

    Overall height

    1,130 mm

    Seat height

    815 mm

    Wheelbase

    1,280 mm

    Minimum ground clearance

    113 mm

    Min. turning radius

    Fuel tank capacity

    11.0litres

    Oil tank capacity

  • Performance

    Front rack

    Rear rack

  • Wheels

    Steering system
