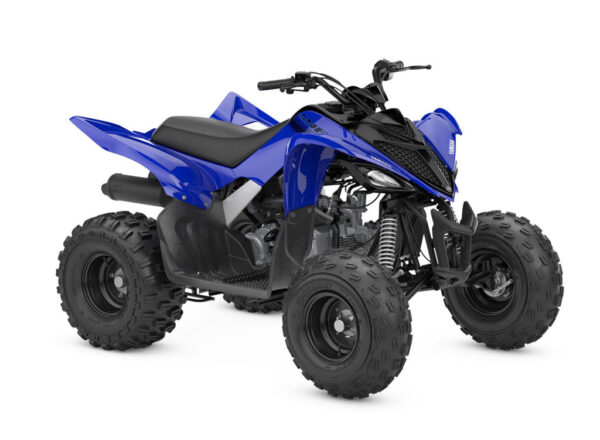

Model Description


Reinspiring a new generation of racers.

The YFM110R balances the impressive power and responsiveness of a 112cc fuel-injected engine with features to give you total peace of mind. A simple TCI plug-in adjusts engine power to suit different riding abilities, while a handlebar parking brake means the YFM110R stays exactly where you left it.

Easy to use, fun to ride and simple to maintain, the Yamaha YFM110R is the clear choice for responsible adults – and with its YFM700R racer-inspired styling, this mini version of a grown-up ATV has got to be at the top of every kid’s wish list!

The YFM110R may be built with your minis in mind, but it’s massive on features, many found on larger Yamaha models – including double A-arm independent front suspension, a rear disc brake, CVT transmission and electric start. #DRIVENBYVICTORY

Colours

Racing Blue

Teal

Details

  • Just like the YFM700R
  • Punchy 112cc fuel injected engine
  • Confident ride with true ATV character
  • Safe braking thanks to sealed drum brakes
  • Automatic transmission – F/N/R
  • Parents can control and set speed by throttle limiter
  • ANSI approved for children 10 years old and up.

Model Specification


  • Engine

    Engine Type

    Single cylinder, 4-stroke, air-cooled, SOHC, 2-valves

    Fuel System

    Fuel Injection

    Starter System

    Electric

    Displacement

    88cc

    Bore x stroke

    47.0 mm x 51.0 mm

    Compression Ratio

    10.2 : 1

    Lubrication System

    Wet sump

    Ignition System

    TCI

    Drive system

    2WD

    Final transmission

    Chain

  • Frame

    Front suspension system

    Swing Axle

    Rear suspension system

    Swingarm

    Front brake

    Drum brake

    Rear brake

    Drum brake

    Front tyres

    AT18x7-8

    Rear tyres

    AT18x7-8

  • Dimensions

    Overall length

    1,490 mm

    Overall width

    885 mm

    Overall height

    910 mm

    Seat height

    654 mm

    Wheelbase

    1,010 mm

    Minimum ground clearance

    100 mm

    Min. turning radius

    Fuel tank capacity

    4.8litres

    Oil tank capacity

    0.9 litres

  • Performance

    Front rack

    Rear rack

  • Wheels

    Steering system
