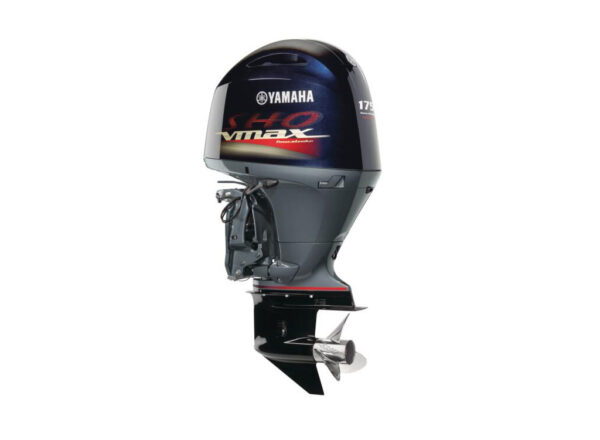

V MAX SHO 175hp

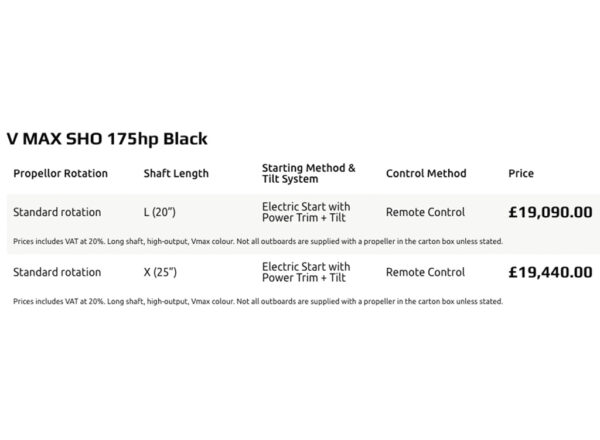

£19,090.00

Make an Enquiry Part Exchange Enquiry

V MAX SHO 175hp Promotions


Model Description


V MAX your torque.

2.8 litres, 175 cc, compact body and signature design – the V MAX SHO 175hp accepts no compromise. It has an amazing power-to-weight ratio and is expertly designed to deliver its unique acceleration in a clean, efficient and quiet way.

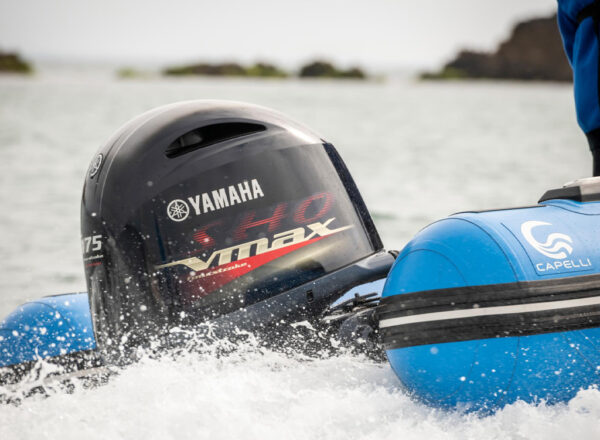

The streamlined cowling design, with aggressive, stylish V MAX graphics, conceals advanced technology features like a 16-valve, double-overhead cam engine layout with variable camshaft timing and electronic fuel injection – but there’s no hiding the blistering acceleration and heart-pumping top speed.

From a practical viewpoint too, this is no ordinary outboard. For example, the three-phase, high-power (50A) alternator provides plenty of juice to power all the on-board electronics. What’s more, it delivers enough power to charge your batteries even at trolling speed, so you will never run out of power.

At a glance

  • Compact design – more power delivered for less weight
  • Class-leading torque and high-speed performance
  • Tuned for out-of-the-hole performance on light boats
  • Smooth and quiet – for relaxed boating and fishing
  • Distinctive & well-known “V MAX SHO” cowling design
  • High output 50A alternator – power from low RPM
  • Unmatched Yamaha reliability

    • Model Specification


    • Engine

      Engine Type

      4-stroke

      Displacement

      2,785cc

      No. of cylinders/configuration

      L4

      Bore x stroke

      96.0 x 96.2

      Prop shaft output at mid range

      128.7 kW / 175 HP

      Full throttle operating range

      5,000-6,000 r/min

      Lubrication system

      Wet sump

      Carburettors

      EFI

      Ignition / advance system

      TCI

      Starter system

      Electric with Prime Start™

      Gear ratio

      1.86 (26/13)

      Fuel tank capacity

      Steering

      Throttle and shift controls

      Trim & tilt method

      Lighting Coil / Alternator

      12 V – 50A w. rectifier / regulator

      Propeller

      Optional

      Max Thrust (kg)

      Amp Draw

      Voltage

      Control

      Remote Control

      Valves

      Cam

    • Dimensions

      Recommended boat transom height

      L516X:643mm

      Weight without propeller

      227kg

      Oil pan capacity

      4.5 L / 4.3 L

      Weight

      7

      Shaft Length

    • Other

      Warranty

      2 Year
