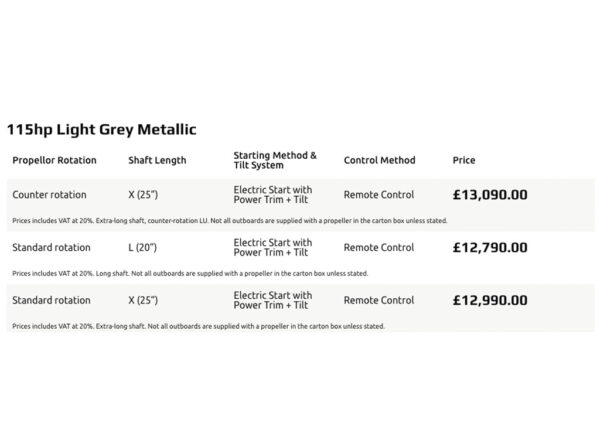

115hp Promotions

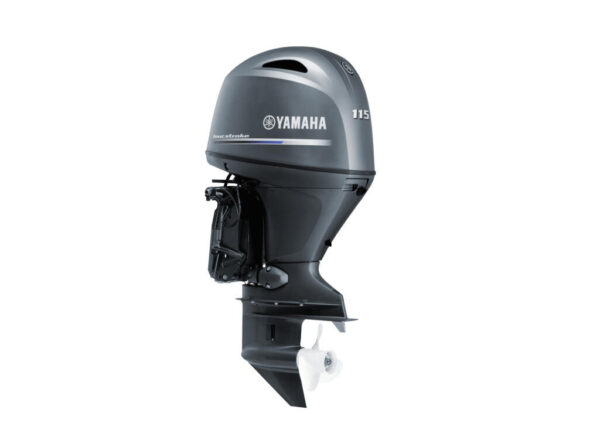

Model Description


Delivering the best power-to-weight in the class.

The innovative, lightweight design 115hp lets you relax and enjoy your boat to the full – knowing you’re powered by one of the cleanest, smoothest engines on the planet.

Not only is the engineering impressive – this is a 1.8 litre, 16 big-Valve, in-line 4-cyl DOHC 4-stroke – but it’s blended with a host of electro/technical features to make life easier: Compatibility with our optional Digital Network System, Wide Range Power Trim & Tilt with Tilt angle limiter and Y-COP® remote security system (both optional) to name but a few.

The efficiency of our well proven EFI systems and other new combustion technologies ensure the utter dependability of this outstanding Yamaha engine.

At a glance

  • 1,832cc 16-Big-Valve DOHC in-line 4 cyl 4-stroke
  • Weighs only 174kg – class-leading power-to-weight
  • EFI – clean, efficient performance and reliability
  • Latest-generation top cowling – sleek and compact
  • Variable Trolling RPM system – for relaxed boating
  • 35A High Output alternator – extra starting power
  • Single Ram PTT and optional Tilt Angle Limiter
  • Shallow Water Drive for cruising close inshore
  • TALON Series propeller – damps noise and vibration
  • Counter-rotating propeller model available
  • Yamaha Customer Outboard Protection (Y-COP) option
  • Compatible with Yamaha Digital Network system
  • Model Specification


    • Engine

      Engine Type

      4-stroke

      Displacement

      1832cc

      No. of cylinders/configuration

      4/In-line, 16-valve, DOHC

      Bore x stroke

      81.0 mm x 88.9 mm

      Prop shaft output at mid range

      84.6 / 5,800 rpm

      Full throttle operating range

      5,300 - 6,300 rpm

      Lubrication system

      Wet sump

      Carburettors

      EFI

      Ignition / advance system

      TCI

      Starter system

      Electric with Prime Start™

      Gear ratio

      2.15 (28:13)

      Fuel tank capacity

      Steering

      Throttle and shift controls

      Trim & tilt method

      Power Trim & Tilt

      Lighting Coil / Alternator

      12V -35Awith rectifier/regulator

      Propeller

      Optional

      Max Thrust (kg)

      Amp Draw

      Voltage

      Control

      Remote Control

      Valves

      Cam

    • Dimensions

      Recommended boat transom height

      L516X:643mm

      Weight without propeller

      173kg - 177kg

      Oil pan capacity

      3.2litres

      Weight

      7

      Shaft Length

    • Other

      Warranty

      2 Year
