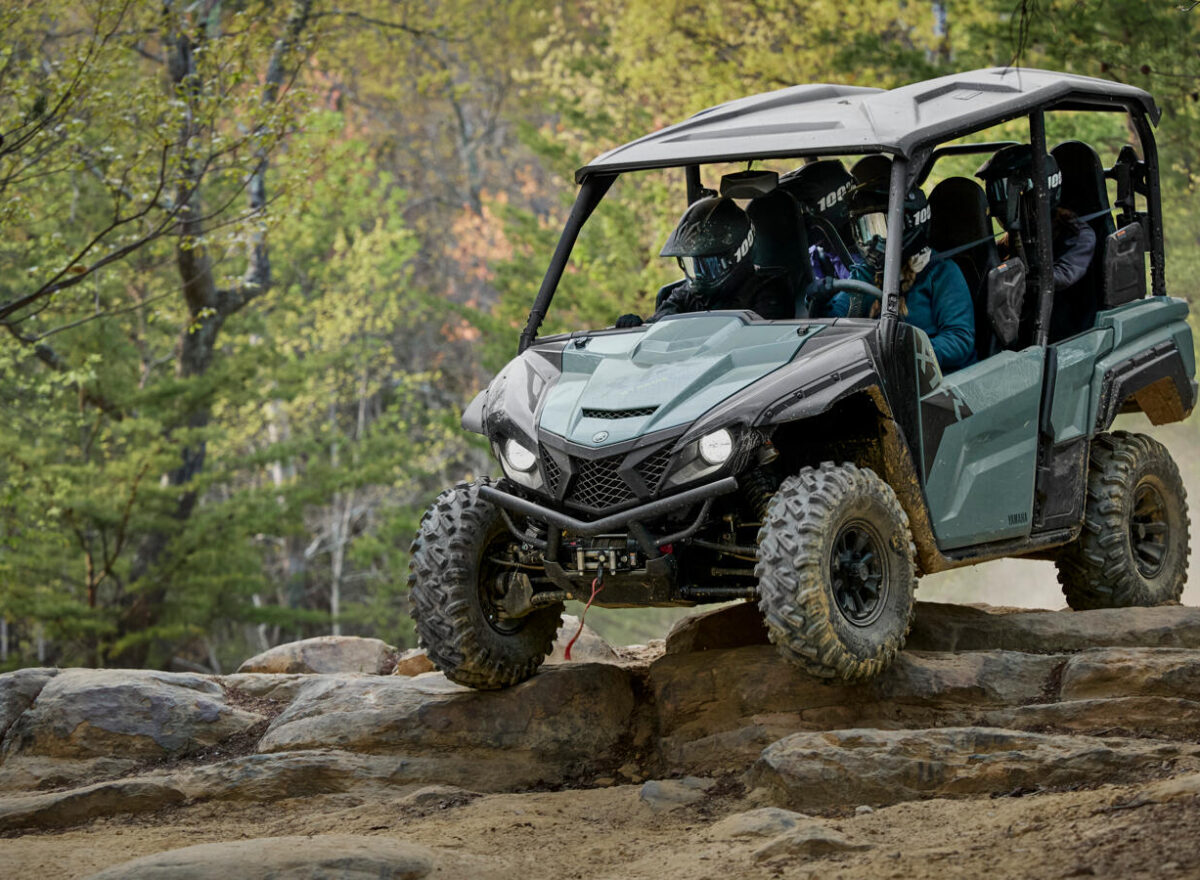

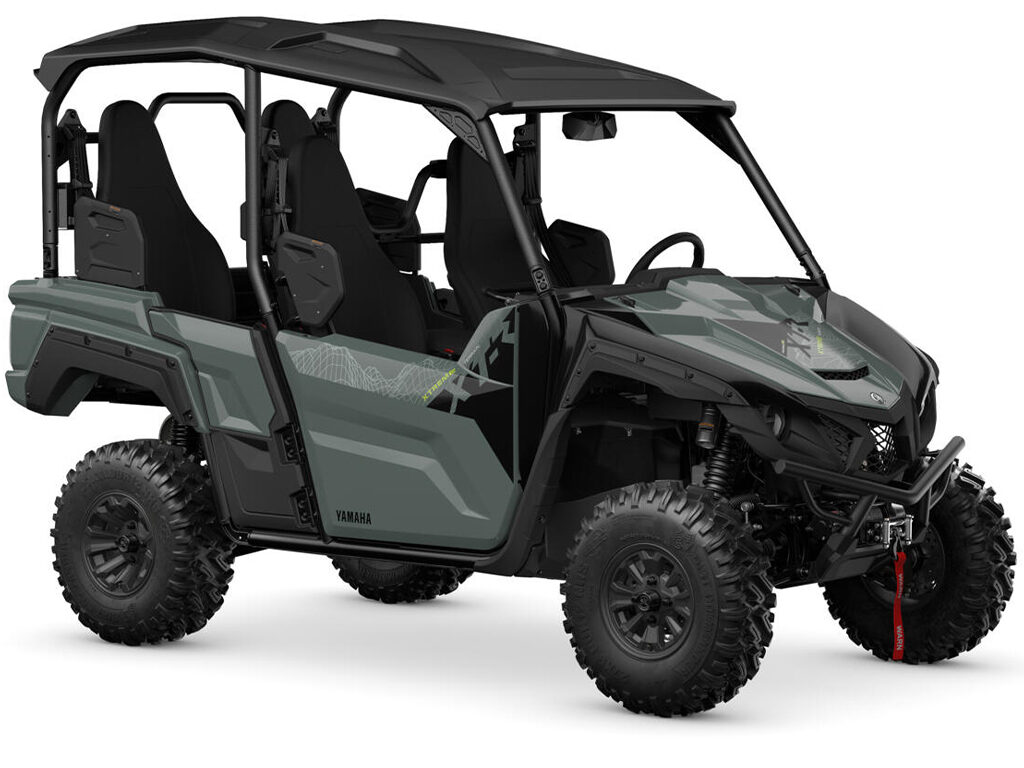

2026 Wolverine® X4 850 XT-R

£TBC

Make an Enquiry Test Ride Enquiry Part Exchange Enquiry

2026 Wolverine® X4 850 XT-R Promotions


Model Description..


REIMAGINE EVERYTHING.

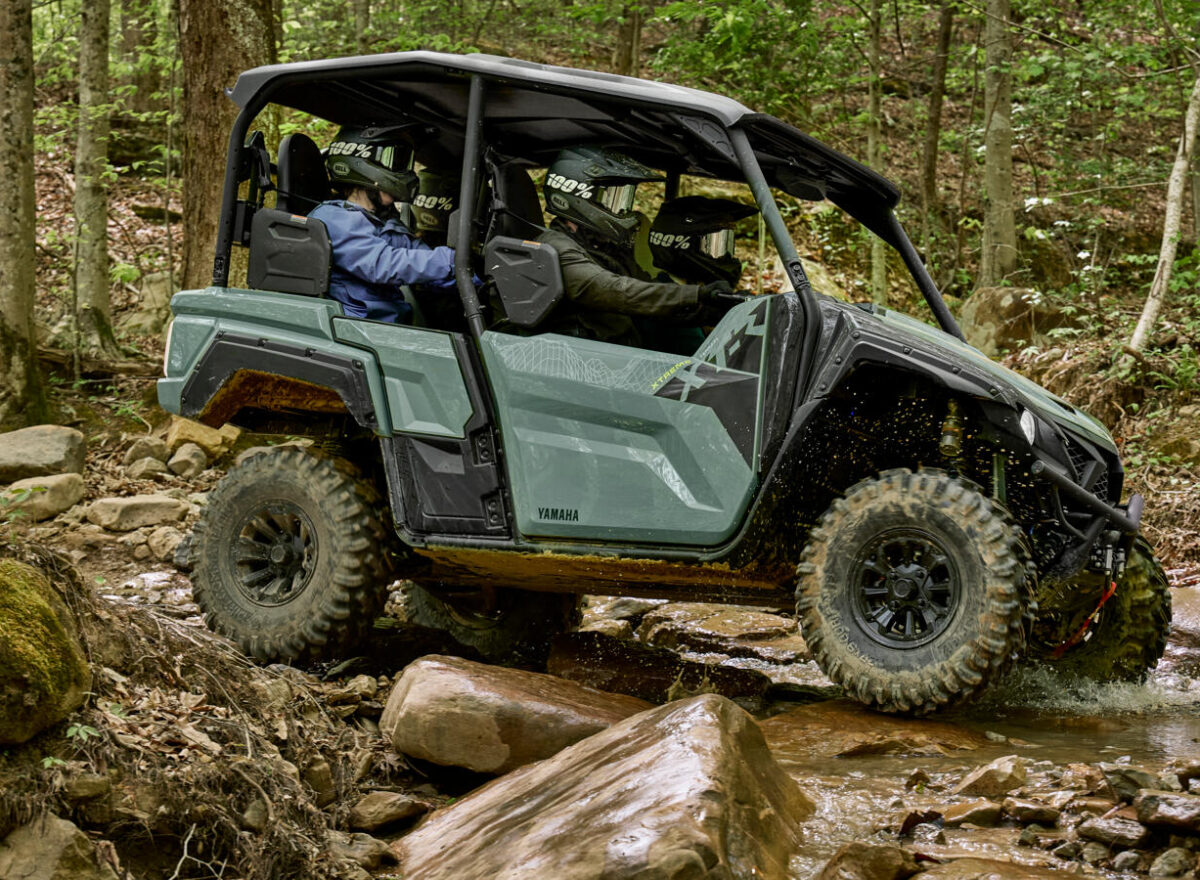

The Wolverine® X4 850 XT-R is built to take 4 full-sized adults across extreme terrain – and with its high-torque engine and compact chassis, this user-friendly Side-by-Side gives you capability, comfort and confidence. #DRIVENBYFREEDOM

The Wolverine® X4 XT-R’s powerful 850cc parallel twin-cylinder engine produces impressive torque for easy low-speed mastery of technical terrain, while the smooth-running Ultramatic® transmission and our switchable On-Command® drive system with 2WD/4WD/Diff-lock give you even more confidence and control.

With high-back seats that easily accommodate four adults, this is one of the most comfortable ways to get out and explore the far horizons with your friends. Its compact chassis gives outstanding levels of agility and manoeuvrability in all types of terrain and conditions.

COLOUR

Moss Grey / Tactical Black

AT A GLANCE

  • Powerful 850cc twin cylinder engine
  • Ultramatic® CVT transmission
  • On-Command® 2WD/4WD system
  • Self-leveling rear shocks
  • Compact and agile chassis
  • Quiet and comfortable interior
  • 4 full-size high-back seats
  • Adaptable and versatile layout
  • Speed Management Key
  • XT-R capable and aggressive package

    • Model Specification


    • Engine

      Engine Type

      Liquid-cooled, 4-stroke, DOHC, Parallel Twin

      Fuel System

      Mikuni fuel injection with Drive by wire, dual 36mm throttle bodies

      Starter System

      Electric

      Displacement

      847cc

      Bore x Stroke

      82mm x 80.2mm

      Compression Ratio

      10.5 : 1

      Lubrication System

      Dry sump

      Ignition System

      TCI

      Transmission System

      Yamaha Ultramatic® CVT automatic V-belt all-wheel engine braking (L/H/N/R)

      Drive System

      On-Command® 2WD, 4WD, 4WD with Diff-lock

      Final Transmission

      Shaft

      Rear Suspension System

      Independent Double Wishbone with Anti-Sway Bar, 226 mm of wheel travel with self-leveling shock absorbers

    • Suspension

      Front Suspension System

      Independent Double Wishbone with Anti-Sway Bar, 221 mm of wheel travel. KYB Piggy back shocks with threaded spring preload, Hi & Low speed compression and rebound adjustment.

    • Brakes

      Front Brake

      Dual ventilated hydraulic disc

      Rear Brake

      Dual ventilated hydraulic disc, Shaft mounted parking brake

    • Wheels

      Front Tyres

      27" Dirt Commander tyres / 12" Aluminium rims

      Rear Tyres

      27" Dirt Commander tyres / 12" Aluminium rims

    • Frame

      Overall Length

      3,100mm

      Overall Width

      1,580mm

      Steering system

      Rack and Pinion Steering Assembly with Electric Power Steering

      Towing capacity

      907kg

    • Dimensions

      Overall Height

      2,125mm

      Seat Height

      793mm

      Wheelbase

      2,125mm

      Min. turning radius

      4,800mm

      Wet weight (including full oil and fuel tank)

      823kg

      Fuel tank capacity

      35l

      Oil tank capacity

      4.1l

      Cargo bed

      71kg
