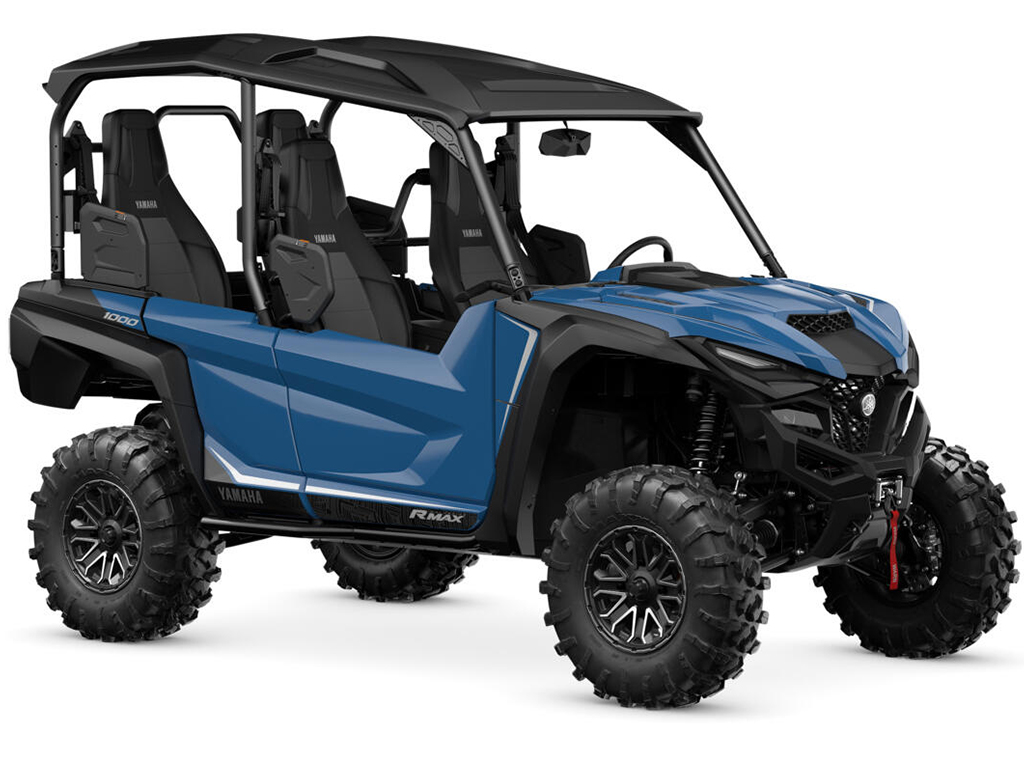

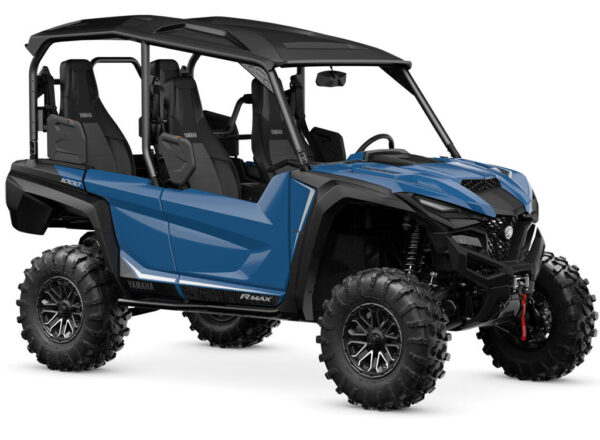

2025 Wolverine® RMAX™4 1000 Compact LE

£31,020

2025 Wolverine® RMAX™4 1000 Compact LE Promotions


Model Description..


REIMAGINE EVERYTHING.

Share your adventures in the comfortable, class-leading, auto-inspired cabin with four-seat versatility. The unmatched power of Yamaha’s 999cc parallel-twin engine partners RMAX’s unique D-Mode feature with Sport, Trail, and Crawl Modes, FOX® 2.0 iQS in-cabin adjustable shocks increase rider comfort, for off road exploring in style. #DRIVENBYFREEDOM

The Wolverine® RMAX™4 1000 Compact LE offers unprecedented style and comfort, but also expands your horizons, enabling you to take friends and family out for an exhilarating day of all-terrain adventures. New experiences will be easier to find too, thanks to the amazing on-board features and sophisticated control systems.

The Wolverine® RMAX™ 1000 family follows our development philosophy of “Jin-Ki Kanno” which translates from Japanese as “the exhilaration of being one with the machine” to bring you a super-capable off roader, in which driver and passengers feel confident to master the very toughest terrain.

COLOUR

Dusty Blue

AT A GLANCE

  • Powerful 999cc 2-cylinder Engine
  • Three drive modes, one ultra-versatile machine
  • Tyres designed for the toughest terrain
  • On Command system – Turf Mode
  • Advanced, comfort-focused suspension
  • Spacious four-person cabin
  • Four seats plus cargo
  • Imposing and aggressive styling
  • Rugged front bumper
  • Stylish and helpful interior lighting
  • Durability you can count on
  • Model Specification


    • Engine

      Engine Type

      Liquid-cooled, 4-stroke, DOHC, Parallel Twin

      Fuel System

      Mikuni fuel injection with dual 48mm throttle bodies

      Starter System

      Electric

      Displacement

      999cc

      Bore x Stroke

      93 mm x 73.5 mm

      Compression Ratio

      11.2 : 1

      Lubrication System

      Dry sump

      Ignition System

      TCI

      Transmission System

      Yamaha Ultramatic® CVT automatic V-belt

      Drive System

      On-Command® 2WD, 4WD, 4WD with Diff-lock and Turf mode

      Final Transmission

      Shaft

      Rear Suspension System

      Independent Double Wishbone with Anti-Sway Bar, 337 mm of wheel travel /FOX 2.0 iQS

    • Suspension

      Front Suspension System

      Independent Double Wishbone with Anti-Sway Bar, 361 mm of wheel travel /FOX QS3 piggy back

    • Brakes

      Front Brake

      Dual ventilated hydraulic disc

      Rear Brake

      Dual ventilated hydraulic disc, Shaft mounted parking brake

    • Wheels

      Front Tyres

      AT29 x 9-14 GBC® Dirt Commander®

      Rear Tyres

      AT29 x 9-14 GBC® Dirt Commander®

    • Frame

      Overall Length

      3,255 mm

      Overall Width

      1,677 mm

      Steering system

      Rack and Pinion Steering Assembly with selectable Electric Power Steering

      Towing capacity

      907 kg

    • Dimensions

      Overall Height

      2,110 mm

      Seat Height

      872 mm

      Wheelbase

      2,290 mm

      Min. turning radius

      6,000 mm

      Wet weight (including full oil and fuel tank)

      930 kg

      Fuel tank capacity

      35 L

      Oil tank capacity

      5.5 L

      Cargo bed

      272 kg
