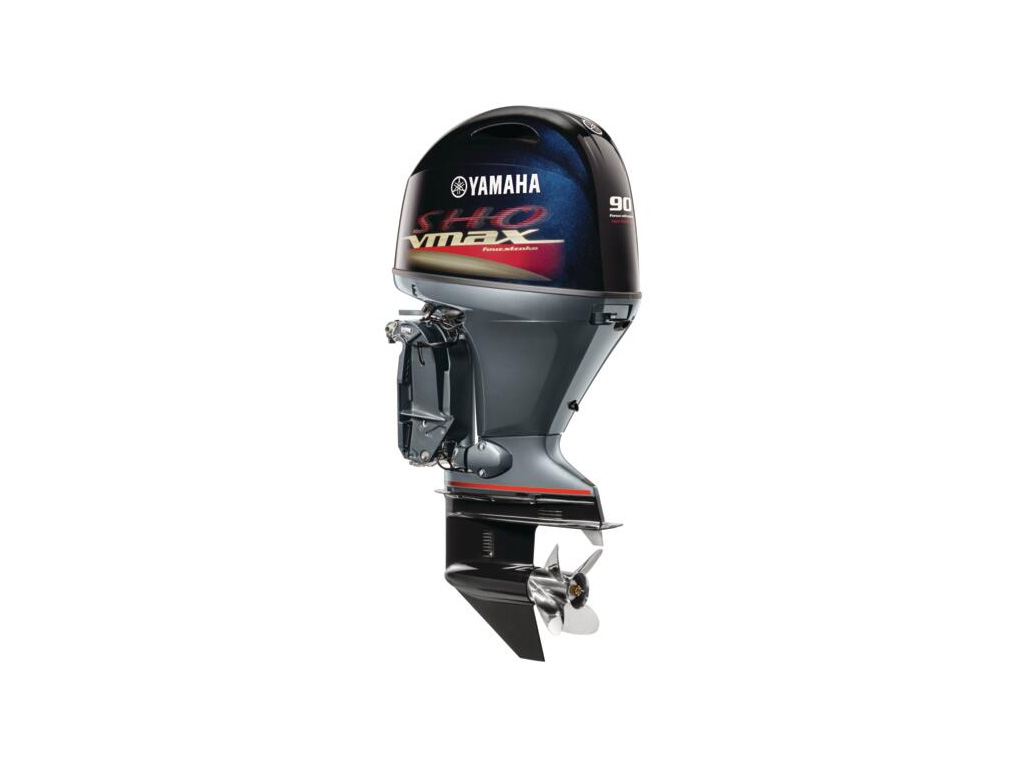

V MAX SHO 90hp

This is a previous model year that we don't stock.

Please use the menu above to browse our in stock and current models.

Model Description


A lightweight heavyweight.

V MAX SHO 90hp is the lightest model in the internationally renowned VMAX range. Specifically tuned to deliver unexpected out-of-the-hole performance and acceleration with blistering top speed, it’s the ultimately stylish way to get out on the water to satisfy your sporting instincts.

In technical terms, the V MAX SHO is a masterpiece of engineering craftsmanship. In order to achieve the results we wanted – low weight with high performance – our engineers came up with a single overhead camshaft format, with four large valves per cylinder and a special long-track intake manifold.

That’s why the V MAX SHO 90hp is ideally suited for the light, fast exciting boats that people use to get out and have fun with their friends. In fact, despite its compact size and modest weight, it still delivers best-in-class torque and high speeds – without compromising our signature quality.

At a glance

  • Incredible acceleration – perfect for lightweight boats
  • Class-leading torque and high-speed performance
  • Compact design – more power delivered for less weight
  • Distinctive & well-known “V MAX SHO” cowling design
  • High output 35A alternator – power from low RPM
  • Smooth and quiet – for relaxed boating and fishing
  • Unmatched Yamaha reliability

    • Model Specification


    • Engine

      Max Thrust (kg)

      Amp Draw

      Voltage

      Engine Type

      4-stroke

      Displacement

      1.832 cc

      No. of cylinders/configuration

      4/in-line, 16-valve, DOHC

      Bore x stroke

      81.0 x 88.9 mm

      Prop shaft output at mid range

      66.2 kW / 90 HP

      Full throttle operating range

      5,000-6,000 r/min

      Lubrication system

      Wet sump

      Carburettors

      EFI

      Ignition / advance system

      TCI

      Starter system

      Electric with Prime Start™

      Gear ratio

      2.33 (28/12)

      Fuel tank capacity

      Steering

      Throttle and shift controls

      Lighting Coil / Alternator

      12 V – 35 A w. rectifier / regulator

      Propeller

      Optional

      Control

      Remote Control

      Trim and tilt method

      Valves

      Cam

    • Dimensions

      Weight

      7

      Recommended boat transom height

      L516X:643mm

      Oil pan capacity

      3.2 L / 3.0 L

      Shaft Length

      Weight without propeller

      162kg - 166kg

    • Other

      Warranty

      2 Year
