Model Description

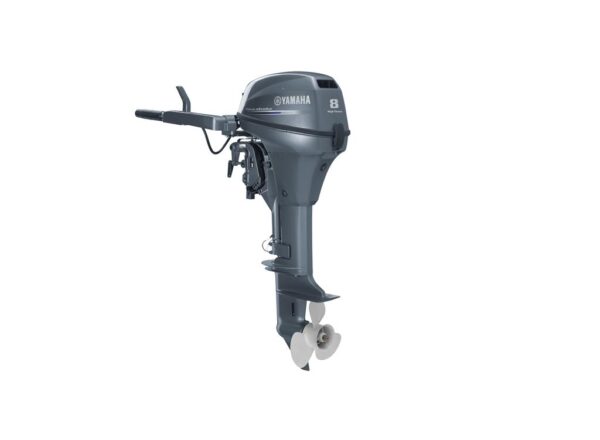

Harness a high-thrust workhorse

When you want raw power and precise handling, FT models are the perfect answer. Ideal for sailing, fishing and working boats, these high-thrust, high-torque engines set new standards of performance, with minimal noise and vibration – and maximum fuel economy.

FT models use Yamaha’s patented Dual-Thrust propeller to provide full thrust in Forward and Reverse – making light work of manoeuvring a heavy boat.

CDI/TCI Micro-computer Ignition offers easy starting and reliability whatever the conditions, and high-output alternators provide extra starting power, even after long periods at low RPM. FT Series engines are big, powerful workhorses – designed never to let you down.

  • special gear ratios for higher thrust

  • Dual-Thrust prop – high-thrust in Forward/Reverse

  • EFI (FT60/50) for low emissions & fuel efficiency

  • High-output alternator

  • CDI Ignition (FT25/FT9.9/8),TCI Ignition (FT60/50)

  • Wide Range Power Trim & Tilt (FT60/50/25)

  • Yamaha’s immobiliser security system (FT60/FT50)

  • Power tilt (FT9.9/FT8)

Model Specification

  • Engine

    Max Thrust (kg)

    Amp Draw


    Engine Type

    Four Stroke


    197 cm3

    No. of cylinders/configuration


    Bore x stroke

    56.0 mm x 40.0 mm

    Prop shaft output at mid range

    5.9kW / 5,500 rpm

    Full throttle operating range

    5,000 - 6,000 rpm

    Lubrication system

    Wet sump


    1 carb.

    Ignition / advance system

    CDI Micro-Computer

    Starter system

    Manual (DM), Electric (DE)

    Gear ratio

    2.92 (38/13)

    Fuel tank capacity

    separate, 12 litres


    Tiller (DMH), Remote control (DE)

    Throttle and shift controls

    Tiller handle (DMH), Single lever remote control (DE)

    Lighting Coil / Alternator

    12V - 6A




    Trim and tilt method



  • Dimensions


    Recommended boat transom height

    L:508mm X:635mm

    Oil pan capacity

    0.8 litres

    Shaft Length

    L / X

    Weight without propeller

  • Other
