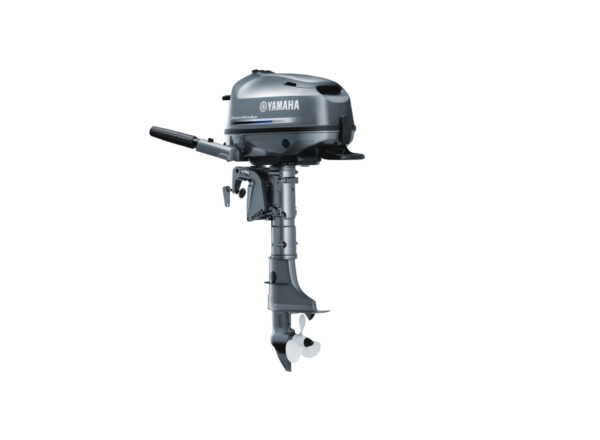

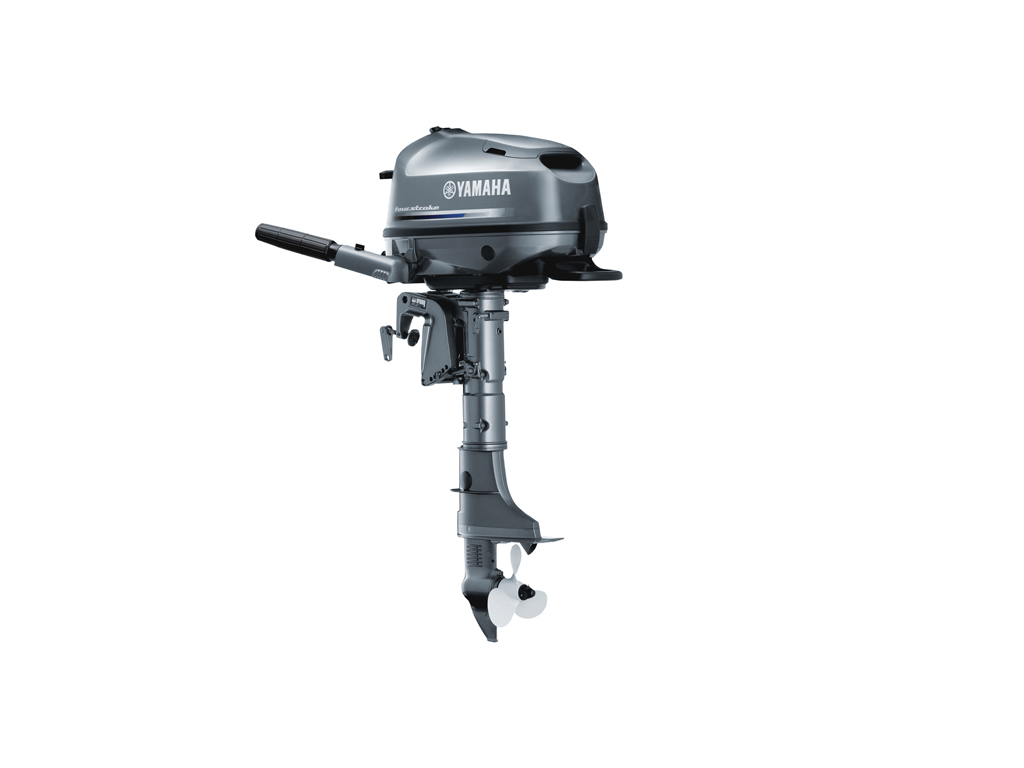

F4B

This is a previous model year that we don't stock.

Please use the menu above to browse our in stock and current models.

Model Description


Easy to carry. Even easier to enjoy.


Discover engines so light that they’re easily carried to the shore or onto the deck of your main boat. The F4, F5 and F6 are convenient to store and use, offering the power you need to hit the water with confidence.


Their compact size, large carrying handles and built-in fuel tanks enhance their portability – and start-up is easy with Yamaha’s CDI Ignition System. On the water, low fuel consumption, simple controls and low noise and vibration levels come as standard. As with any Yamaha, reliability is assured.


Whether you’re a fishing enthusiast looking for an easy way to get on the water, or a yacht owner seeking a handy auxiliary, the F4, F5 and F6 offer ideal solutions.
Details




  • Fresh two-tone body colour with white top cowling


  • Unique 3-position oil-leak-free storage system


  • Convenient auxiliary prime pump in the cowling


  • Large carrying handle for convenience and comfort


  • CDI Ignition for easy starting in all conditions


  • Easy-to-use steering and large shift knob


  • Low noise and low vibration for extra comfort


  • Yamaha durability and great value retention


  • Lighting coil option available


  • Built-in 1.1 litre fuel tank


  • Blow-by gas re-burning system


  • Yamaha over-rev limiter


Model Specification


  • Engine

    Max Thrust (kg)

    Amp Draw

    Voltage

    Engine Type

    Four Stroke

    Displacement

    139 cc

    No. of cylinders/configuration

    1

    Bore x stroke

    62.0 mm x 46.0 mm

    Prop shaft output at mid range

    2.9kW / 4,500 rpm

    Full throttle operating range

    4,000 - 5,000 rpm

    Lubrication system

    Wet sump

    Carburettors

    1 carb.

    Ignition / advance system

    CDI Micro-Computer

    Starter system

    Manual

    Gear ratio

    2.08 (27/13)

    Fuel tank capacity

    1.1 litres (Built-in fuel tank) or optional seperate fuel tank

    Steering

    Tiller handle

    Throttle and shift controls

    Tiller handle

    Lighting Coil / Alternator

    12V - 6A *optional

    Propeller

    Included

    Control

    Trim and tilt method

    Valves

    Cam

  • Dimensions

    Weight

    Recommended boat transom height

    S:381mm L:508mm

    Oil pan capacity

    0.6 litres

    Shaft Length

    S / L

    Weight without propeller

  • Other

    Warranty
