Model Description

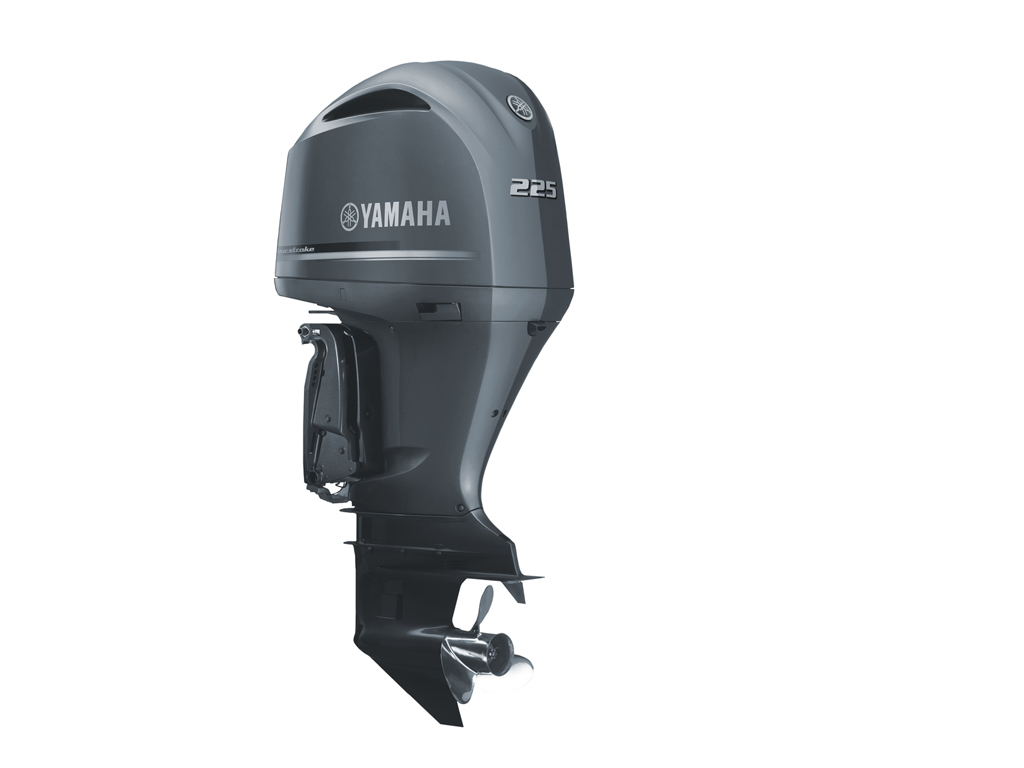

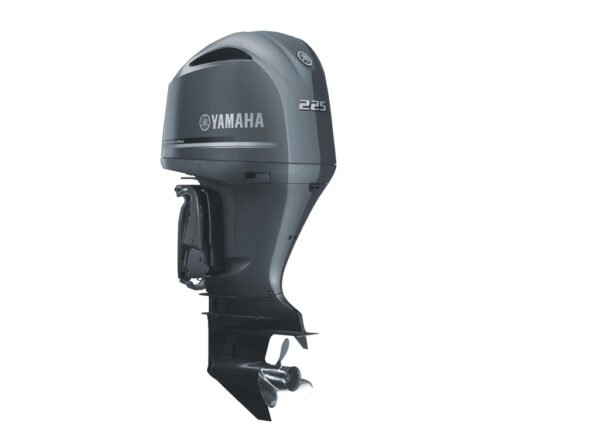

For offshore adventures – the ultimate V6 power

The F225, F250 & F300 outboards represent the pinnacle of Yamaha’s latest-generation marine technology. Designed for the demanding offshore environment, these light, compact V6 engines are the ultimate powerhouses to have behind you on your watersports adventures.

For clean, smooth performance, maximum fuel efficiency and easy starting, the advanced 24-valve DOHC engine features EFI (Electronic Fuel Injection) as well as VCT (Variable Camshaft Timing). Combining technology with style, the sleek, compact design speaks for itself.

Meanwhile, at the helm,Yamaha’s ‘drive-by-wire’ electronic throttle and shift delivers the smoothest, most precise control you’ll ever experience.
  • 24-valve DOHC with Electronic Fuel Injection (EFI)
  • Precise digital electronic throttle/shift control
  • Digital Network Gauges (conventional and premium)
  • Engine synchronisation (twin/triple installations)
  • SDS (shift dampening system) for smooth shift
  • Variable trolling RPM
  • High output alternator for the engine class (70A)
  • Optional Tilt Limiter system
  • Y-COP (Yamaha Customer Outboard Protection)
  • Meets latest RCD (EU 2006) emission rating
  • Wide Range Power Trim & Tilt for smooth control
  • Simple, quick-connect fresh water flushing device

Model Specification

  • Engine

    Max Thrust (kg)

    Amp Draw


    Engine Type

    DOHC, 24 valve with VCT


    4,169 cc

    No. of cylinders/configuration

    V6 (60°)

    Bore x stroke

    96.0 mm x 96.0 mm

    Prop shaft output at mid range

    165.5kW / 5,500 rpm

    Full throttle operating range

    5,000 - 6,000 rpm

    Lubrication system

    Wet sump


    Ignition / advance system


    Starter system

    Electric with Prime Start TM

    Gear ratio

    1.75 (21/12)

    Fuel tank capacity



    Remote Control

    Throttle and shift controls

    Digital electronic remote control, Digital Network II

    Lighting Coil / Alternator

    12V - 70A with rectifier/regulator


    Options available


    Trim and tilt method




    Double Over Head with VCT

  • Dimensions


    Recommended boat transom height

    X:635mm U:762mm

    Oil pan capacity

    6.0 litres

    Shaft Length

    X / U

    Weight without propeller

  • Other
