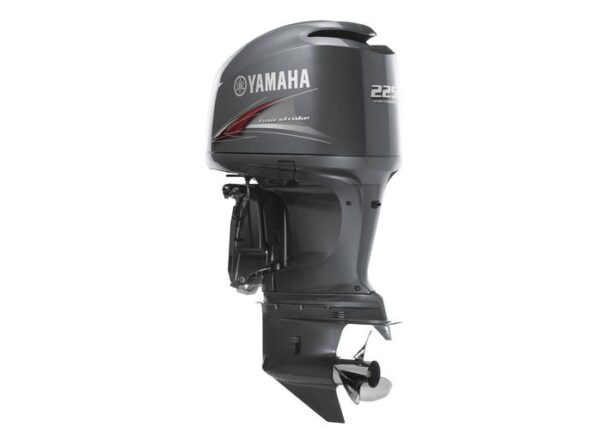

F225C Sport
This is a previous model year that we don't stock.
Please use the menu above to browse our in stock and current models.
Model Description
V6 Basic Series. Top of their class.
What do you really want from an outboard? If it’s phenomenal power and acceleration, as well as clean, quiet, smooth economy – and reliable all-round performance – then look no further.
Thanks to Yamaha’s unique, fuel-efficient EFI system, microprocessor ECU, Variable Camshaft Timing, gas re-burning technology and noise reduction systems, the answer’s right here. And with our sophisticated diagnostic system working via a plug-in computer link to show engine and performance data, maintenance is a breeze.
Like all EFI engines, the F225 and F200 can be linked to the Yamaha network system, so you can choose from the wide range of digital gauges and instruments from Yamaha.
24-valve V6 – smoothness, power and reliability
EFI for cleaner, more efficient performance
Double Overhead Camshaft (DOHC) – clean efficiency
PrimeStart™ system for easy starting
High output alternator
Compatible with Yamaha Digital Network system
SDS (shift dampening system ) – F200 only
Counter-rotating propeller models available
Wide Range Power Trim & Tilt for smooth control
Simple, quick-connect fresh water flushing device
Yamaha’s Ideal Anti-corrosion Protection
Model Specification
-
Engine
Max Thrust (kg)
Amp Draw
Voltage
Engine Type
Four Stroke
Displacement
3,352cc
No. of cylinders/configuration
V6 (60 deg.)
Bore x stroke
94.0 mm x 80.5 mm
Prop shaft output at mid range
165.5kW / 5,500 rpm
Full throttle operating range
5,000 - 6,000 rpm
Lubrication system
Wet sump
Carburettors
Ignition / advance system
TCI/Micro-Computer
Starter system
Electric
Gear ratio
2.00 (30/15)
Fuel tank capacity
option
Steering
Remote Control
Throttle and shift controls
Remote Control
Lighting Coil / Alternator
12V - 44A
Propeller
Options available
Control
Trim and tilt method
Valves
24
Cam
Double Over Head with VCT
-
Dimensions
Weight
Recommended boat transom height
L:508mm
Oil pan capacity
4.5 litres
Shaft Length
L
Weight without propeller
-
Other
Warranty
