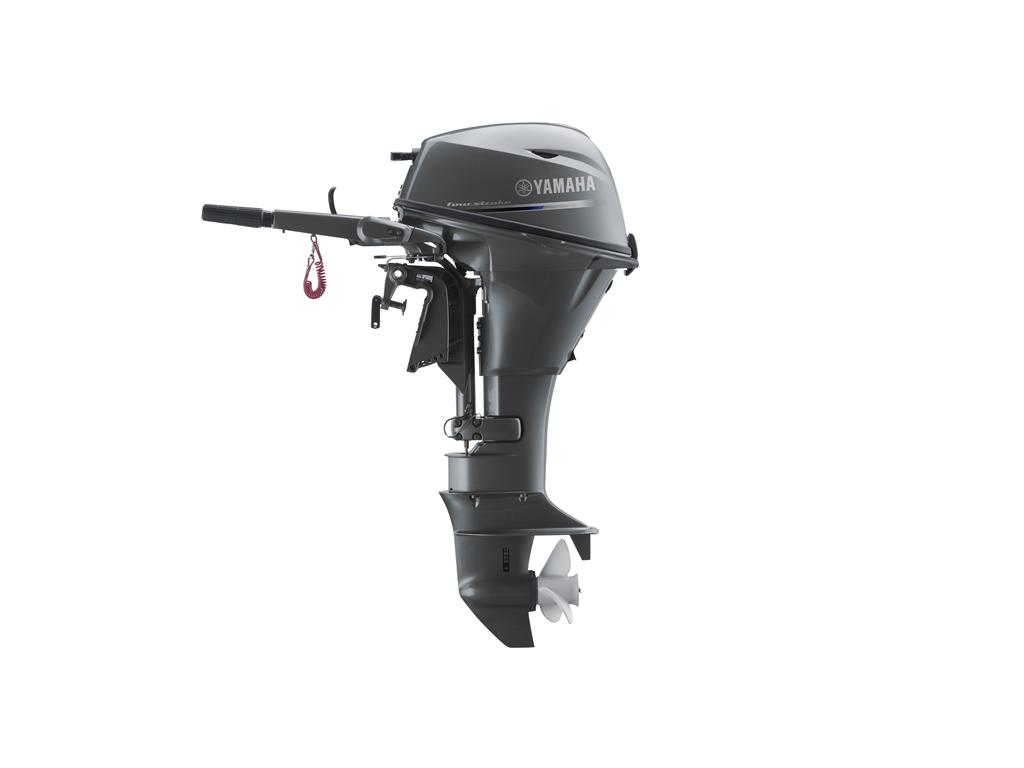

F20B
This is a previous model year that we don't stock.
Please use the menu above to browse our in stock and current models.
Model Description
Small-engine convenience. Big-engine performance.
If you’re looking for the winning combination of easy handling, smooth power and great control, then look no further than the F15, F20 or F25.
These versatile twin-cylinder, 4-stroke engines offer the optimum power-to-weight ratio, along with standout fuel economy. Which means they’re kinder to your pocket – and to the environment – cutting exhaust emissions to a minimum.
Enjoy too, the extra convenience that comes with a Yamaha outboard – benefits such as computer-controlled ignition, a special light-load starting system and a large-volume silencer – normally only featured on larger engines. For professional or leisure use, these compact engines are ready to deliver.
Optimum power-to-weight ratio
PrimeStart™ system for easy starting
CDI Micro-computer Ignition for easy starting
High-output alternators for extra starting power
Manual and Electric start options
Start-in-gear’ Protection
Yamaha’s Ideal Anti-corrosion Protection
One-piece, solid top cowling
Blow-by gas re-burning system
Model Specification
-
Engine
Max Thrust (kg)
Amp Draw
Voltage
Engine Type
Four Stroke
Displacement
362 cc
No. of cylinders/configuration
2
Bore x stroke
63.0 mm x 58.1 mm
Prop shaft output at mid range
14.7kW / 5,500 rpm
Full throttle operating range
5,000 - 6,000 rpm
Lubrication system
Wet sump
Carburettors
1 carb.
Ignition / advance system
CDI Micro-Computer
Starter system
Electric (BE), Manual (BM)
Gear ratio
2.08 (27/13)
Fuel tank capacity
separate, 25 litres
Steering
Tiller (BEH), Tiller (BM), Remote control (BE)
Throttle and shift controls
Single lever remote control (BE), Tiller handle (BM + BEH)
Lighting Coil / Alternator
12V - 10A
Propeller
Included
Control
Trim and tilt method
Valves
Cam
-
Dimensions
Weight
Recommended boat transom height
S:381mm L:508mm
Oil pan capacity
1.6 litres
Shaft Length
S / L
Weight without propeller
-
Other
Warranty
