Model Description..
Delivering the best power-to-weight in their class

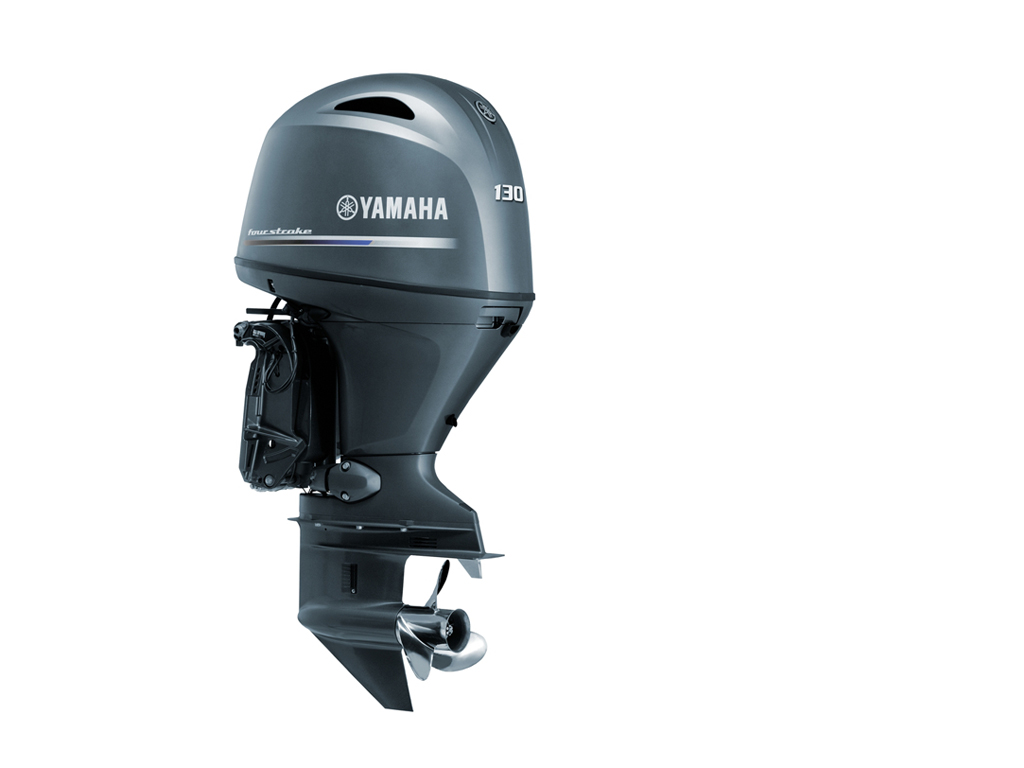

The latest-generation, lightweight designs F115 and F130 let you relax and enjoy your boat to the full – knowing you’re powered by the cleanest, smoothest engines on the planet.
Not only is the engineering impressive – these are 1.8 litre, 16 big-Valve, in-line, 4-cylinder, DOHC, 4-stroke engines – but they are blended with a host of electro/technical features to make life easier, such as: Compatibility with our optional Digital Network System, Y-COP® remote security, Wide Range Power Trim & Tilt with Tilt angle limiter option, to name but a few.
The efficiency of our well proven EFI systems and other new combustion technologies ensure the utter dependability of these outstanding Yamaha engines.
-
1,832cc, 16-Big-Valve, DOHC, in-line, 4 cyl, 4-stroke
 -
Weighs only 174kg – class-leading power-to-weight
 -
EFI – clean, efficient performance and reliability
 -
Latest-generation top cowling – sleek and compact
 -
Compatible with Yamaha Digital Network Gauge system
 -
Variable Trolling RPM system – for relaxed boating
 -
Exclusive Y-COP immobiliser/remote security system
 -
5A High Output alternator – extra starting power
 -
Single Ram PTT and optional Tilt Angle Limiter
 -
Shallow Water Drive for cruising close inshore
 -
TALON Series propeller – damps noise and vibration
 -
ounter-rotating propeller model available (F115)

Model Specification
-
										Engine

Max Thrust (kg)
Amp Draw
Voltage
Engine Type
DOHC, 16 valve
Displacement
1,832 cc
No. of cylinders/configuration
4/In-line
Bore x stroke
81.0 mm x 88.9 mm
Prop shaft output at mid range
95.6kW / 6,300 rpm
Full throttle operating range
5,300 - 6,300 rpm
Lubrication system
Wet sump
Carburettors
Ignition / advance system
TCI
Starter system
Electric with Prime Start™
Gear ratio
2.15 (28/13)
Fuel tank capacity
Steering
Remote Control
Throttle and shift controls
Remote Control
Lighting Coil / Alternator
12V - 35A with rectifier/regulator
Propeller
Options available
Control
Trim and tilt method
Valves
16
Cam
Double Over Head
 -
										Dimensions

Weight
Recommended boat transom height
L:516mm X643mm
Oil pan capacity
3.2 litres
Shaft Length
L / X
Weight without propeller
 -
										Other

Warranty
