F100D
This is a previous model year that we don't stock.
Please use the menu above to browse our in stock and current models.
Model Description
Potent power. Reassuring reliability.

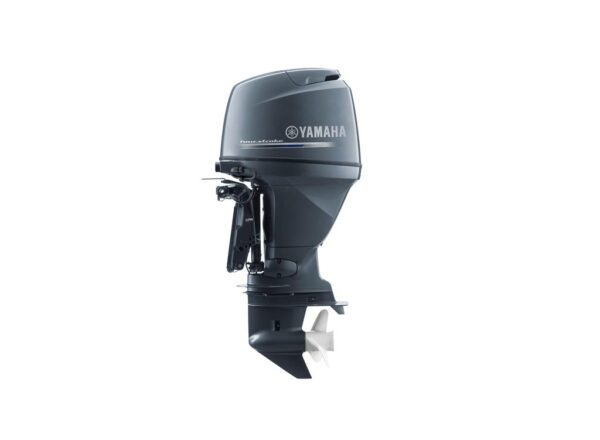

The F80 and F100 are amongst the most versatile and user-friendly outboards in this power sector. In fact, in terms of their sheer power-to-value ratio, they are very hard to beat.
Yamaha’s latest 4-stroke technology means both models offer unmatched performance – thanks to a 16-valve engine with Dual Overhead Camshaft (DOHC) for improved acceleration, advanced intake and exhaust system designs – and Yamaha’s unique multi-point Electronic Fuel Injection (EFI).
A range of convenient features – including PrimeStart™, a high-output alternator, Digital Network Gauges and Yamaha’s Wide Range Power Trim & Tilt system – gives you the confidence that you’re always in full control.
Details
Yamaha’s Customer Outboard Protection (Y-COP)
EFI for cleanliness, efficiency and economy
Double Overhead Camshaft (DOHC) aids performance
Large single throttle valve – for smooth power
Micro-computer ECM (Engine Control Module)
Digital Network Gauges
Variable trolling RPM
PrimeStart™ system for easy starting
Wide Range Power Trim & Tilt for smooth control
Yamaha’s Ideal Anti-corrosion Protection (YDC-30)
Blow-by gas reburning system
Model Specification
-
Engine
Max Thrust (kg)
Amp Draw
Voltage
Engine Type
DOHC, 16 Valve
Displacement
1,596 cc
No. of cylinders/configuration
4
Bore x stroke
79.0 mm x 81.4 mm
Prop shaft output at mid range
73.6kW / 5,500 rpm
Full throttle operating range
5,000 - 6,000 rpm
Lubrication system
Wet sump
Carburettors
Ignition / advance system
TCI/Micro-Computer
Starter system
Electric
Gear ratio
2.27 (25/11)
Fuel tank capacity
option
Steering
Remote Control
Throttle and shift controls
Remote Control
Lighting Coil / Alternator
12V - 25A
Propeller
Options available
Control
Trim and tilt method
Valves
16
Cam
Double Over Head
-
Dimensions
Weight
Recommended boat transom height
L:508mm X:635mm
Oil pan capacity
3.5 litres
Shaft Length
L / X
Weight without propeller
-
Other
Warranty
