Model Description
Lighter weight. Potent power. Vivid acceleration.

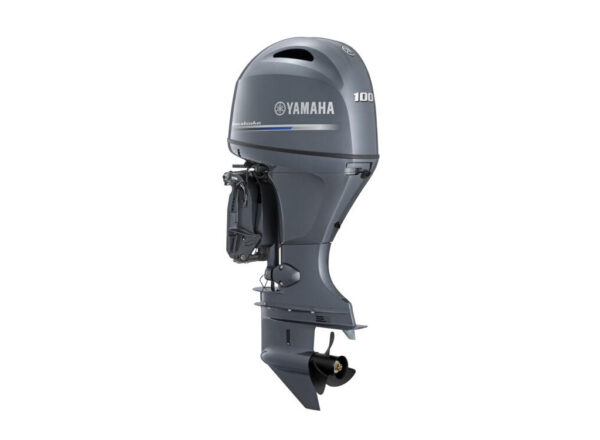

The latest 100hp is now even lighter – so for genuine all-round performance, smooth acceleration and economy, it would be hard to beat. Yamaha’s innovative engineering makes it ultra-reliable too.
Our latest 4-stroke technology offers unmatched performance – thanks to a 16-valve engine with Single Overhead Camshaft (SOHC) for vivid acceleration, advanced intake and exhaust system designs – and Yamaha’s unique multi-point EFI (Electronic Fuel Injection)
A range of convenient features – including PrimeStart™, a high-output alternator, and Yamaha’s Wide-Range Power Trim & Tilt system – gives you the confidence that you’re in full control when you’re out there on the water.
At a glance
Model Specification
-
Engine
Max Thrust (kg)
Amp Draw
Voltage
Engine Type
4-stroke
Displacement
1832cc
No. of cylinders/configuration
4/In-line, 16-valve, DOHC
Bore x stroke
81.0 mm x 88.9 mm
Prop shaft output at mid range
73.5 / 5,500 rpm
Full throttle operating range
5,000 - 6,000 rpm
Lubrication system
Wet sump
Carburettors
EFI
Ignition / advance system
TCI
Starter system
Electric with Prime Start™
Gear ratio
2.15 (28:13)
Fuel tank capacity
Steering
Throttle and shift controls
Lighting Coil / Alternator
12V -35Awith rectifier/regulator
Propeller
Optional
Control
Remote Control
Trim and tilt method
Valves
Cam
-
Dimensions
Weight
7
Recommended boat transom height
L516X:643mm
Oil pan capacity
3.2litres
Shaft Length
Weight without propeller
162kg - 166kg
-
Other
Warranty
2 Year
