Model Description
Where R/World Meets Yours

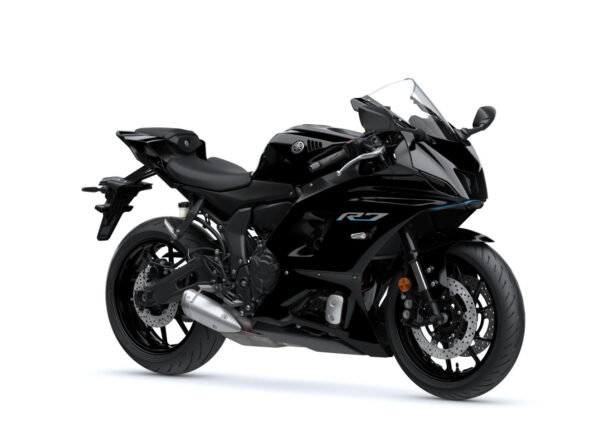

Yamaha R-Series models have been thrilling thousands of riders for over 20 years. Now there’s a sharp-looking addition to the range that’s ready to welcome a new generation of riders into R/World. Fast, agile and handsome, the R7 offers sports performance with everyday fun.
The lively 689cc CP2 engine with A&S clutch provides torque-rich acceleration for a truly exciting riding experience on the track and road. The super narrow and aerodynamic bodywork features an aggressive twin-eye face with a powerful central LED headlight – and the sharp tail and deeply sculpted tank are shaped by pure R-Series DNA. The R7’s high specification brakes and suspension give optimum controllability when cornering and braking.
The frontal area of the R7 is the smallest of the R-Series models, and ensures the highest levels of aerodynamic efficiency – while clip-on handlebars, rear sets and a bump-stop seat give you an adaptable and sporty riding position. This outstanding next generation Supersport makes R/World a reality for thrill-seeking riders like you – whether you’re riding on the track or out on the road.
Colours
Icon Blue – Yamaha Black
Details
- High-torque 689cc CP2 engine
- Athletic design with R-Series DNA
- Aerodynamic cowling and twin-eye face
- A&S clutch for increased controllability
- Lightweight frame fine-tune for chassis rigidity
- Adjustable link-type rear shock
- Fully-adjustable inverted 41 mm front forks
- Sports, tucked-in riding position gives optimum agility
- Radial-mount front brake calipers
- Lightweight 10-spoke wheels
- Optional Quick Shift System for seamless upshifts
- Next generation colours
- Pure R-Series style
Model Specification
-
Engine
Engine Type
2-cylinder, Liquid-cooled, EURO5, 4-stroke, 4-valves, DOHC
Displacement
689 cc
Bore x Stroke
80.0 x 68.6 mm
Compression Ratio
11.5 : 1
Maximum Power
54.0 kW (73.4 PS) @ 8,750 rpm
Maximum Torque
67.0 Nm (6.8 kg-m) @ 6,500 rpm
Starter System
Electric
Transmission
Constant mesh, 6-speed
Lubrication System
Wet sump
Clutch Type
Ignition System
Final Transmission
Fuel Consumption
CO2 Emissions
Fuel System
-
Dimensions
Oil Tank Capacity
3.0 L
Fuel Tank Capacity
13 L
Length (mm)
2,070 mm
Width (mm)
705 mm
Height (mm)
1,160 mm
Wheel Base (mm)
1,395 mm
Weight (kg)
188 kg
Ground Clearance (mm)
135 mm
-
Frame
Front Tyre
120/70ZR17M/C (58W) Tubeless
Rear Tyre
180/55ZR17M/C (73W) Tubeless
Frame
Caster Angle
Trail
Front Suspension System
Rear Suspension System
Front Travel
Rear Travel
Front Brake
Rear Brake
