Model Description..

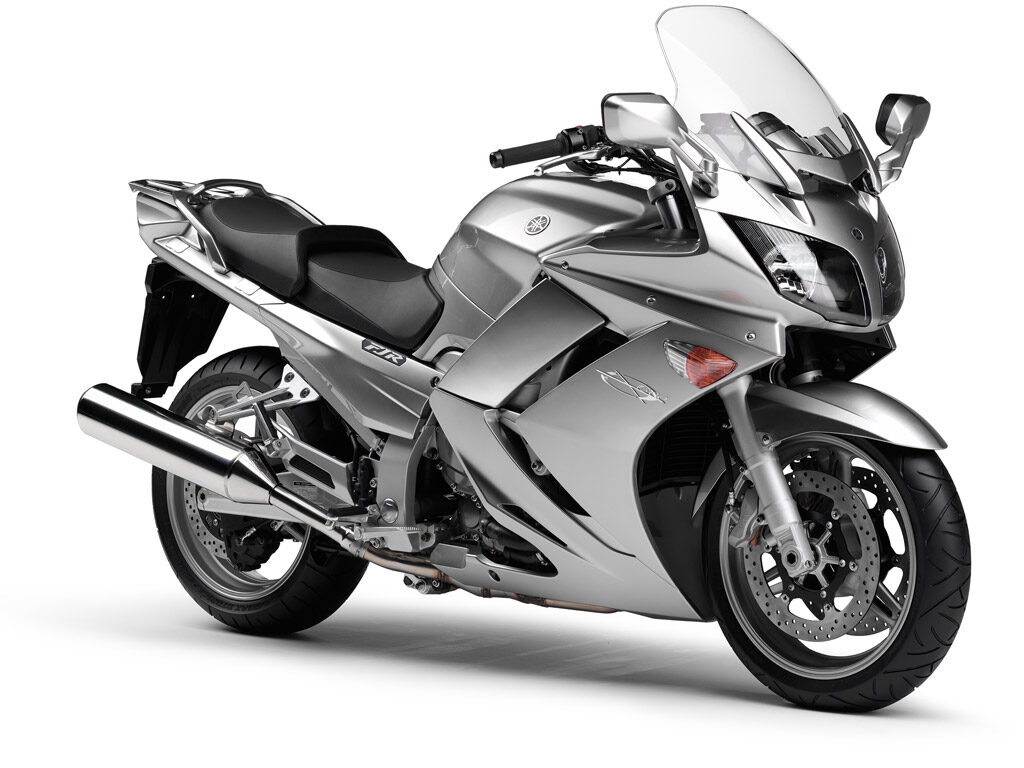

Whether you’re cruising along the Autobahn or powering through a snaking Alpine pass, this hugely capable sports tourer is in its element. Equipped with a low-maintenance shaft drive, the 1,298cc inline 4-cylinder engine produces silky-smooth performance for an effortless ride.
With its adjustable windscreen, handlebars and seat – as well as heated grips and a 25 litre fuel tank – the FJR1300A is ready to cover enormous distances in deluxe sports style.
Model Specification
-
Engine
Engine Type
Liquid-cooled, 4-stroke, forward-inclined parallel 4-cylinder, DOHC
Displacement
1,298 cc
Bore x Stroke
79.0 x 66.2 mm
Compression Ratio
10.8 : 1
Maximum Power
105.5 kW (143.5 PS) @ 8,000 rpm
Maximum Torque
134.4 Nm (13.7 kg-m) @ 7,000 rpm
Starter System
Electric
Transmission
Constant mesh, 5-speed
Lubrication System
Wet sump
Clutch Type
Ignition System
Final Transmission
Fuel Consumption
CO2 Emissions
Fuel System
-
Dimensions
Oil Tank Capacity
4.9 L
Fuel Tank Capacity
25 L
Length (mm)
2,230 mm
Width (mm)
750 mm
Height (mm)
1,315 - 1,450 mm (adjustable windscreen)
Wheel Base (mm)
1,545 mm
Weight (kg)
291 kg
Ground Clearance (mm)
130 mm
-
Frame
Front Tyre
120/70 ZR17M/C (58W)
Rear Tyre
180/55 ZR17M/C (73W)
Frame
Caster Angle
Trail
Front Suspension System
Rear Suspension System
Front Travel
Rear Travel
Front Brake
Rear Brake
